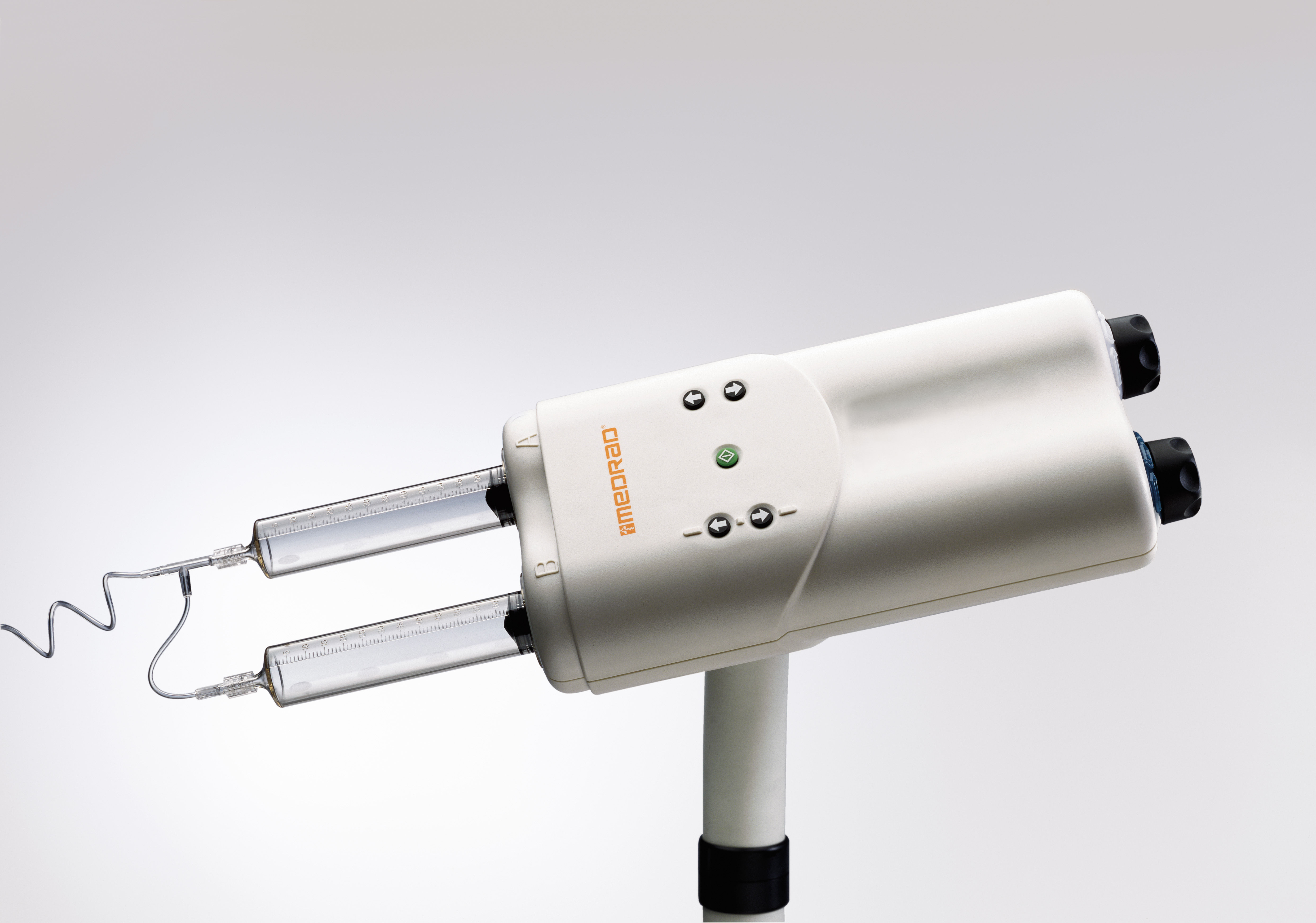

Medrad Spectris


Get pricing on a refurbished or used Medrad Spectris contrast injector system today. All injectors are complete and fully tested. We can accommodate next-day shipping via parcel (if no pedestal) and freight (if pedestal included). Call or email us for pricing.


Get a Quote Today on a used or refurbished Medrad Spectris contrast injectors - Call 216-600-0801 or email garrett.monasmith@medcoblue.com


Injector Options for Sale:

  • Used Medrad Spectris contrast injectors
  • Refurbished Medrad Spectris contrast injectors


Service Options for the Medrad Spectris contrast injectors:

  • Preventative Maintenance
  • Calibration Verificaiton
  • On-Site Service/ Repair
  • Mail-In/ Depot Repair


The Medrad Spectris is used for performing in intravenous injections of MR contrast medium and common flushing solutions.  This system is flow-controlled, at the flow rate selected on the DCU.

  • Is used for performing intravenous injections of MR contrast medium and common flushing solutions via the peripheral venous system with a magnetic resonance imaging scanner of up to 1.5 tesla field strength magnet.  The spectris MR injection system is a flow-controlled system.  The flow rate that is selected on the DCU is the flow rate at which the injector will deliver contrast for the duration of the injection.
  • Features:
  • Injector head holds two disposable 63 ml front load syringes
  • Two manual adjustment knobs
  • Lightened indicators on the back of the injector head to display which syringe is armed or injecting
  • Injector head and stand weighs 37.5lbs


Get a Quote Today - Call 216-600-0801 or email garrett.monasmith@medcoblue.com


Specifications

Dimensions

Injector Head/Stand

  • Height: 53.13” (135 cm)
  • Width: 18.63” (47.3 cm)
  • Depth: 18.63” (47.3 cm)
  • Weight: 37.5 lbs (16.8 kg)


HCU

  • Height: 9.13” (23.2 cm)
  • Width: 10” (25.4 cm)
  • 12.63” (32 cm)


Battery Pack

  • Height: 2.38” (6 cm)
  • Width: 9.25” (23.5 cm)
  • Depth: 5” (12.7 cm)


OTR

  • Height: 1.5” (3.8 cm)
  • Width: 4.5” (11.4 cm)
  • Depth: 2” (5.1 cm)


Electrical Requirements

  • VAC: 120-240 VAC
  • Hz: 50/60 Hz
  • VA: 250 VA


System Capabilities

  • Syringe A: Disposable 63mL
  • Syringe B: Disposable 63mL


Flow/Pressure

  • Flow Rate: 0.1 - 10 mL/sec in 0.1 mL/sec increments
  • KVO: 0.25 mL at 1 mL/sec every 30 seconds
  • Volume: 1 - 63 mL in 1 mL increments
  • Pressure Limit: Factory set at 300 PSI
  • Delay: 00:00 sec - 59:59 min.


Fluid Delivery Performance

  • Volume Range: 1 mL to 63 mL for syringe A or B; 1 mL increments
  • Accuracy: Over a full injection + 1% of programmed volume and ± 1 mL
  • Flow Rate Range: 0.1 to 10 mL/sec increments
  • Accuracy: ± 10% of programmed volume and + 0.02 mL/sec during any non-pressure limited interval of stead flow
