Description

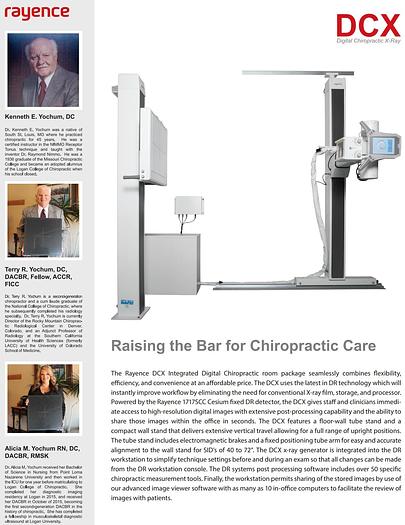

Rayence DCX Digital Chiropractic X-Ray System (New)

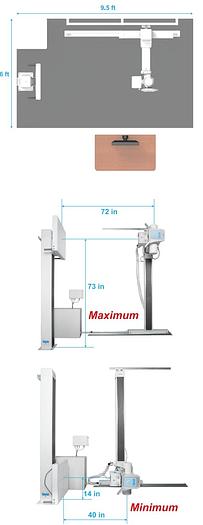

A3306 Basic Floor-to-Wall Tube Stand

• 5 ft. rails

• Electric locks for vertical & horizontal tube travel

• Fixed tubearm (specify 10", 14", 17", 19" or 23" FS to column front)

• Platform Tube mount, Angulation Dial with manual lock, operator handgrips


A130 200 KHU X-Ray Tube

• 0.6/1.5mm FS (specify shoot left or right)

• C600-20 20ft. High Voltage Cables


07877-125 Certified Manual Collimator

• LED

• Dual Laser Crosshairs

• Swivel


A6100 Wall Stand

• Electric lock

• 17" grid cabinet

• 103 LPI, 10:1 ratio grid, focal range 40"-72"

• Hospital grade tray

• Generator to DR software integration kit with handswitch


Spectra 40HF AP High Frequency Generator

• 40kW, 1 Phase

• Technique Selection: kVp/mAs & Anatomical Programming (specify 250 or 400 speed Chiropractic techniques)

• kVp range: 40-125, mA range: 50-500, mAs range: 0.2-600

• 15 ft. Console Cables, Printed Manuals, UL Label, 14 ft. Line Cable

• For operation on 1 phase, 208 VAC, 175 Amp, or 1 phase, 240 VAC, 150 Amp electrical service

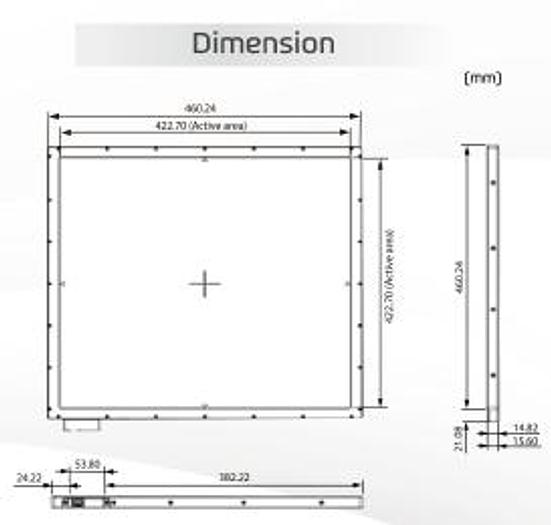

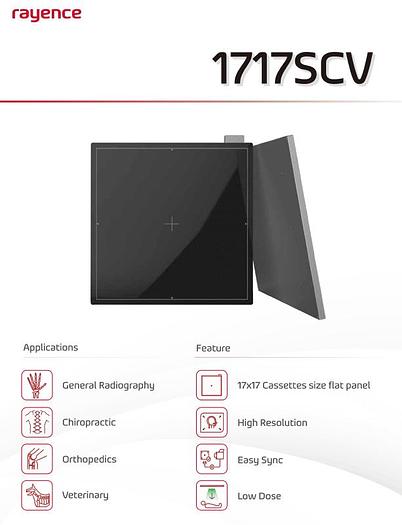

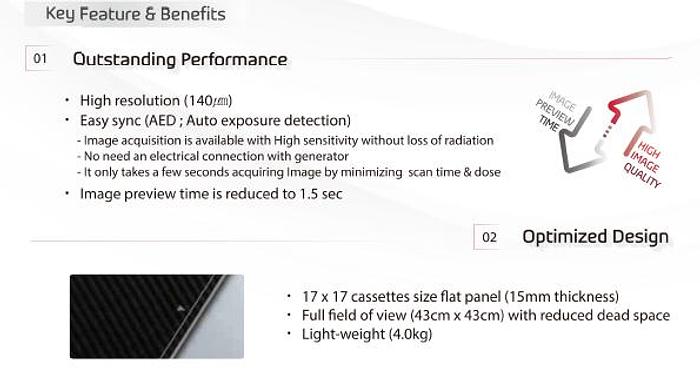

Rayence 1717SCV 17" x 17" Cassette Sized Tethered Flat Panel Detector (New)

• CsI: Cesium conversion layer (scintillator)

• a-Si: (Amorphous Silicon) readout layer

• Auto Trigger (AED) Mode

• 140μm Micron Pixel Pitch

• 3072 x 3072 pixel matrix

• 3.5 lp/mm

• A/D Conversion: 14-bit

• Energy Range: 40~150 kVp

• Image Preview <3 seconds

• Power Supply

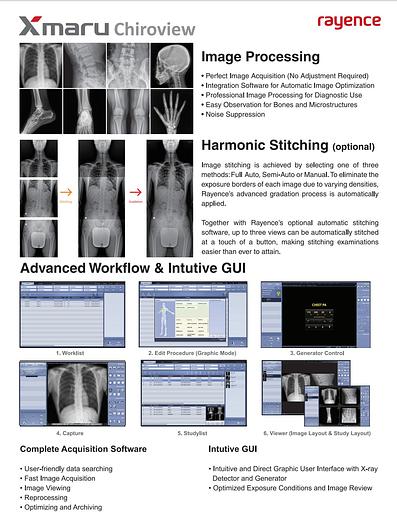

Xmaru Chiroview Chiropractic Acquisition Software

Key Features

• Chiropractic Specific Exposure Exam List

• DICOM Modality Worklist, DICOM Storage, DICOM Send, DICOM

Print

• Image Stitching

• Low Exposure Optimization

• Analysis Statistics Report (ASR): tracks image acceptance,

rejections, retakes and deletion

• Annotations and CD/DVD or thumb drive burning with Mini Viewer

• Basic security features - customized log in/log out & user restrictions

• Enhanced image processing parameters

• Wireless signal on wireless panel

• Detector battery indicator (wireless)

• Selectable GPR (Grid Pattern Removal)

• Send to multiple PACS destinations having different compression

formats


MiniPACS

• Includes ten (10) concurrent licenses, which can be upgraded up to

twenty (20)

• Requires no static IP addresses on workstations other than on the

acquisition workstation

• Comes with annotations and markers that can be applied and

viewed by any user

• Specialty Measurement Tools


Acquisition Workstation

• OptiPlex 7090 SFF MLK

• Intel vPro Technology Enabled

• Intel Integrated Graphics, Dell OptiPlex

• 500GB M.2 NVMe SSD

• 16GB (2x8GB) 2666MHz DDR4 Memory

• Intel® Core™ i5-10500/i5-11500 (6 Cores/9MB/6T/3.0GHz to

4.4GHz/65W);

supports Windows 10/Linux

• 2nd Intel Gigabit NIC PCIe Card (Low Profile)

• 2nd 1TB 2.5 inch SATA (7200 Rpm) Hard Drive, OptiPlex

• TPM Enabled

• OptiPlex System Power Cord

• Bracket for 2.5 inch Hard Drive Disk, Mini Tower, OptiPlex

• Cyberlink Media Suite Essentials for Windows 10 and DVD drive

(without Media)

• 8x DVD+/-RW 9.5mm Optical Disk Drive

• ODD Bezel, Small Form Factor

• 2nd 2.5” HDD Caddy with Cable Small From Factor

• Intel Core i7 vPRO Label

• Dell Developed Recovery Environment

• Waves Maxx Audio

• OptiPlex 7090 Small Form Factor with 200W up to 92% efficient

Power Supply

• Black Dell KB216 Wired Multi-Media Keyboard English

• Black Dell MS116 Wired Mouse

• Win 10 Pro 64 English, French, Spanish

• ProSupport for Dell Data Protection Endpoint Security Suite

Enterprise, 1 Year

• ProSupport: Next Business Day Onsite 3 Years

• ProSupport: 7x24 Technical Support, 3 Years

• Dell Limited Hardware Warranty Plus Service


Non Touch Screen Monitor

• Dell P2418H or similar

• Full HD (1080p) 1920 x 1080 at 60Hz

• Aspect Ratio 16:9

• Pixel Pitch 0.2745 mm

• Pixel Per Inch 93

• Brightness 250 cd/m²

• Contrast 1000:1

• Pixel Per Inch 93

• Display Type LED-Edgelight System

• Item Dimensions 21.2 x 7.2 x 19.5 in with stand

• Diagonal Size 23.8 inches

• Built-in Devices USB 3.2 Gen 1 hub


Warranties:

5-Year Parts on Chiropractic X-Ray System

5-Year Pro-rated on X-Ray Tube

5-Year on Manufacturer Defects on Rayence Flat Panel Detector

5-Year on Rayence Acquisition Software to Include Updates and Remote Technical Support

3-Year on Dell Manufactured Computer PC and Monitor

1-Year on Router Manufacturer Warranty (if applicable)

6-Month on Battery from Manufacturer Defects (if applicable)

Specifications

ManufacturerRayence
ModelDCX
ConditionNew
Stock NumberS5MO5T0222
